DeFelsko ATM50 PosiTest AT-M Manual Pull-off Adhesion Tester with 50mm Dollies, # ATM50A, for Coatings on Concrete, Wood and Plastic, Range 0.4 - 3.5 MPa / 50 - 480 psi

---

Typical Applications: Lower bond strength coating on wood, concrete and plastic

---

Range: 0.4 - 3.3 MPa / 50 - 480 psi

---

Conforms with ASTM D4541 / D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12

---

The DeFelsko ATM50 PosiTest AT-M Manual Pull Off Adhesion Tester with 50mm Kit Measures adhesion of coatings to metal, wood, concrete and other substrates - Revolutionary self-alignment feature and pull rate indicator brings new meaning to adhesion measurements. A manual hydraulic pump is designed to apply smooth and continuous pressure with a single stroke.

The DeFelsko ATM50A PosiTest AT-M Manual Pull Off Adhesion Tester with 50mm Kit features an environmentally sealed enclosure. It is weatherproof, dustproof and shockproof. Meeting or exceeding IP65 rating.

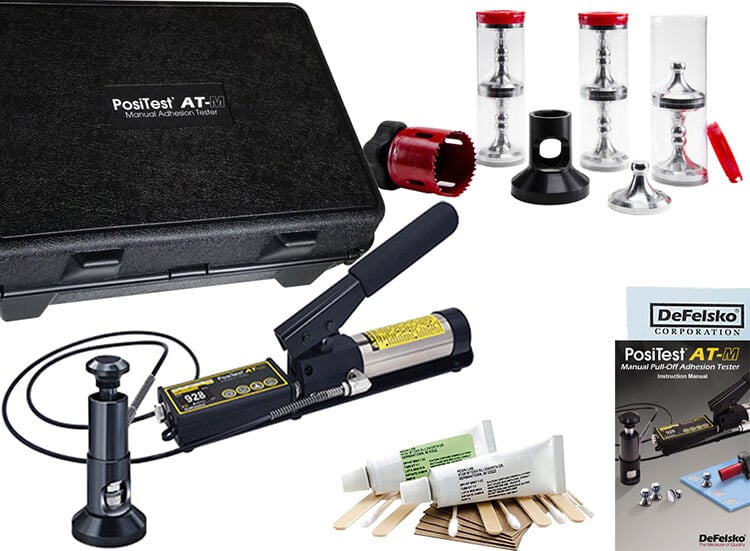

Kit Contents

The DeFelsko ATM50 PosiTest AT-M Adhesion Tester 50mm Kit includes everything needed for testing:

PosiTest AT-M50 Manual Pull-Off Adhesion Tester Built-in rechargeable NiMH battery with charger 50mm stand-off 50mm dollies (8) 50mm cutting tool Abrasive pad, cotton swabs, glue with mixing sticks and palettes PosiSoft Software and USB cable Certificate of Calibration traceable to NIST Sturdy, lightweight carrying case and instruction booklet Two-year warranty

Features

Simple

• Easily select dolly sizes, change measurement units, or store readings with the touch of a button
• Inexpensive, single-use dollies and plates eliminate cleaning for re-use and can be kept as a permanent record
• Each kit comes with everything needed for testing

Durable

• Environmentally sealed enclosureweatherproof, dustproof and shockproof - meets or exceeds IP65
• Hard-shell carrying case included, with optional upgrade to a heavy-duty Pelican case (Automatic models only)
• Two year warranty

Accurate

• Calibrated and certified to 1% accuracy using a NIST traceable load cell
• Certificate of Calibration showing traceability to NIST included
• Self-aligning dolly enables accurate measurements on smooth or uneven surfaces
• Conforms to national and international standards including ASTM C1583/ D4541/D7234, ISO 4624/16276-1, BS EN 12004-2, AS/NZS 1580.408.5, and others

Versatile

• Select from four stand-offs to suit nearly any application
• Internal memory stores maximum pull-off pressure, rate of pull, test duration, and dolly size
• 10 mm, 14 mm, 20 mm, 50 mm, 50 x 50 mm Tile, and 50 mm C1583 dollies maximize capability and measurement resolution across a wide range of bond strengths

Powerful

• Sealed USB port for fast, simple connection to a PC
• Includes PosiSoft suite of software for viewing and reporting data

PosiTest AT-M Manual

• Manual hydraulic pump designed to apply smooth and continuous pressure with a single stroke
• Pull Rate Indicator to manually monitor and adjust the rate of pull
• Internal memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls
• Compatible with PosiSoft Desktop for viewing, printing and storing measurement data

Key Features

• Manual hydraulic pump designed to apply smooth and continuous pressure with a single stroke
• NEW High-contrast, easy to read color display
• Environmentally sealed enclosureweatherproof, dustproof and shockproofmeets or exceeds IP65
• Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
• Pull Rate Indicator to manually monitor and adjust the rate of pull
• Internal memory stores maximum pull-off pressure, pull rate, test duration and dolly size for up to 200 pulls
• NEW Field replaceable AAA alkaline batteries provide up to 16 hours of testing
• 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths

10 mm: 10000 psi (70 MPa) 14 mm: 6000 psi (40 MPa) 20 mm: 3000 psi (20 MPa)

50 mm: 480 psi (3.3 MPa) 50x50 mm: 375 psi (2.585 MPa)

• User selectable measurement units: psi (pounds per square inch) or MPa (Megapascal)
• Every PosiTest Adhesion Tester is calibrated and certified to 1% accuracy using a NIST traceable load cell
• Compatible with PosiSoft Desktop software for viewing, printing and storing measurement data

* Optional 20mm/50mm/50 mm C1583/50 mm Tile Conversion Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).

Conforms to international standards including ASTM C1583/D4541/D7234/D7522, ISO 4624/16276-1, EN 1542/12004-2, AS/NZS 1580.408.5 and others

PosiSoft Suite of Software

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

Accessories

DeFelsko Dollies for PosiTest AT Adhesion Testers Loading fixtures, stubs for adhesion testing. Choose from the following sizes and quantities: Size Quantity Order Code 10 mm 10 DOLLY10 14 mm 10 DOLLY14 20 mm 10 DOLLY20 50 mm 4 DOLLY50

DeFelsko Dolly Multipacks for PosiTest AT Adhesion Testers Larger quantity of dollies at a reduced cost. Select from the following multipacks Size Quantity Order Code 10 mm 100 DOLLY10APK100 14 mm 100 DOLLY14APK100 20 mm 100 DOLLY20APK100 50 mm 50 DOLLY50APK50

DeFelsko Conversion Kit AT20KIT for PosiTest Adhesion Testers Order Code: AT20KIT Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 10, 14 and 20 mm dollies Ideal for high bond strength finishes such as coatings on metal Includes 20 mm stand-off, 20 mm hole saw and 20 mm aluminum test dollies (20)

DeFelsko Conversion Kit AT50KIT for PosiTest Adhesion Testers Order Code: AT50KIT Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 50 mm dollies Ideal for lower bond strength finishes such as coatingson wood, concrete and plastic Larger surface area of dolly provides improved low range precision and repeatability Includes 50 mm stand-off, 50 mm hole saw and 50 mm aluminum test dollies (12)

DeFelsko Conversion Kit AT50CKIT for PosiTest Adhesion Testers Order Code: AT50CKIT Ideal for measuring the tensile strength of concrete surfaces and concrete repairs and overlay materials Conforms to ASTM C1583 Includes 50 mm C1583 steel dollies (4), 50 mm diamond grit cutting tool with arbor and 50 mm C1583 stand-off NOTE: Drill required (not included)

DeFelsko Conversion Kit AT50TKIT for PosiTest Adhesion Testers Order Code: AT50TKIT Interchangeable standoff allows a PosiTest ATM50 or ATA50 to pull 10, 14 and 20 mm dollies Ideal for high bond strength finishes such as coatings on metal Includes 20 mm stand-off, 20 mm hole saw and 20 mm aluminum test dollies (20)

Drilling Template for 50 mm Dollies Order Code: TMPLTAS Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete Includes (10) drill bits 5/32" (4 mm)

Glue Kit Order Code: ATADHESIVEKIT ResinLab EP11HT 2-Part Epoxy Additional glue, mixing sticks, palettes and cotton swabs

Pelican Case for PosiTest AT Pull-Off Adhesion Testers Order Code: CASEATAB-P Heavy-duty, waterproof Pelican cases complete with a custom foam insert to securely hold your PosiTest instrument
